DG-Bottling machine
DEGONGET
8438400000
Product description |
Our beer bottle washing filling capping monoblock is designed combined with the actual situation in our country after the introduction and absorption that comes from Germany technologies.
It adopts isobaric filling principle and filling valve adopts high precision mechanical valve. It has advantages of fast filling speed, high precision in liquid level. Adopt MITSUBISHI automatic controlling system, realizing trinity of the machines, and control the washing, filling and capping process.
Features |
1.Adopts high precision mechanical valve, has advantages of fast filling speed, high precision in liquid level.
2. Sealed filling cylinder made of 304 stainless steel and automatic adjustment of the liquid level to realize isobaric filling.
3. Has CIP cleaning function, touching screen control, the whole machine is protected by stainless door.
4. Adopt vacuumization and CO2 preparing pressure principal, and then prepare pressure for a second time to make sure the filling quality.
5. The height of the washing filling capping machine is adjustable to fill different kinds of beer bottles within the design scope.
6. Main transmission adopts a transmission combination of cog-type belt and gear box type, high efficiency and low noise.
7. Main transmission adopts stepless speed regulation. The machine adopts MITSUBISHI PLC industrial computer control.
8. When there are bottles, it will fill. Otherwise, it won't.
9. There are two kinds of control system, manual and automatic. When using manual system, if there is no beer or cap, the machine can alarm automatically. When using automatic system, it can automatically adjust if you set the requirement.
Technical parameters |
Item | Parameters |
Washing heads | Customizable |
Filling heads | Customizable |
Capping heads | Customizable |
Capacity | 1000~1500BPH |
Bottle type | height:105~ 300mm bottle neck:①50~①85mm bottle diameter: 50-88mm |
Air consumption | 0.15m3/min (0. 4~0.6Mpa) |
CO2 consumption | 1.6kg/l000L |
Water consumption | 0. 8m3/h |
Vacuum pump | 0. 2m3/h |
1. The biggest advantage is external filling vale which can ensure the quality of beer.
2. About capping,we replaced the pneumatic cover with a mechanical cover,the quality and stability of the gland are improved.
3. The special point of our new product is all-mechanical transmission, which basically reaches zero failure rate.
4. All the wires are on the top of machine,this improves the security of machine.
5. Twice evacuation, long shelf life. The filling process is cleaner and pure due to its twice evacuation of bottles, and more stable because of isobaric filling operation. Using vacuum pump and CO2 injection to realize the second evacuation ensure no O2 and bacteria in the bottle, guarantee the filling quality and the shelf life. The vacuum rate will be more than 90% after the twice evacuation and the dissolved oxygen will be less than 0.02~0.04mg/L.
6. No bottle, no filling: the machine only starts to fill when there is bottle, because there is sensor to check the bottle. It will avoid the waste of the bottle and beer. The rate of the broken bottle is less than 0.7% and the waste of the beer is less than 0.8%.
7. Easy change, save time. It can be suitable for different bottle height by the up and down device. Nylon board is easy to change. It takes less than half an hour to change the changeable parts. Therefore, this machine is the best ideal choice for beer factories.

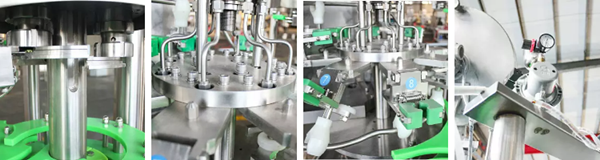

Pictuers show |
Certificate |
Our services |
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

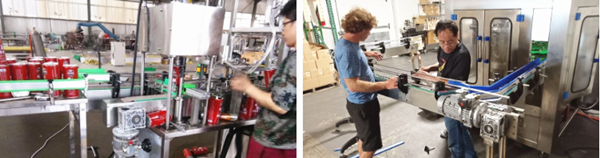

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Guarantee
We guarantee the quality of the main parts within 36 months, guarantee the electric parts within 12 months. If the parts go wrong without artificial factors within guarantee time, we will freely provide them or maintain them for you. After guarantee time, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support you.
FAQ |
Q1: The price is a little higher than my budget. Can you offer a better price?
A: The first proposal is preliminary design, as a professional buyer; pls don't only focus on the price. If you have any question or request, pls don't hesitate to contact us. Then we will adjust the configuration and quality according to your request. Your feedback will lead us to make the proposal to match your request.
Q2: What else need to be paid attention besides price?
A: except for the price, we also need pay attention to quality, product construction, design principle, configuration of part list, reasonability, convenience of operation, professional, service and etc.
Q3: Can you provide turnkey project service?
A: Yes, of course, we can provide the full set of turnkey project service to you.
Q4. Do you accept OEM order?
A: Yes, we have strong design team and technical team. Therefore we can also accept OEM and customized order with special requirements.
